Easy read instrument panel installs in between steering wheel and left front side wind shield. It display the status of forklift performance without interfering by steering wheel operations.
The easy-handling steering wheel column with tilt adjustment helps to provide the ideal operating position and improve performance.
Integral forward/reverse & direction lever offers easy shifting between forward and reverse while keeping both hands on the wheel. It is easy to reach and fast to change direction.
Hand brake is equipped with micro switch to aviod inproper touch accidently and to ensure the safety.
Integral OHG light include side, reverse, rear lights, brake and direction indicators.
Integral head light and side lights.
A strong no-bolt integral heavy duty chassis gives the driver more protection from falling loads,suite for all kind working surface.
The engine has low original emissions, a high post-processing regeneration efficiency and low regeneration triggering criteria.

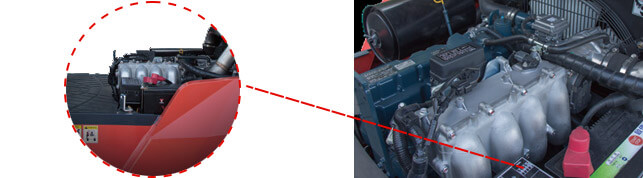

The Kubota engine is highly integrated and has a compact engine structure and parts to be maintained arranged on one side to enable easy maintenance.
With stable idle loading performance, full torque output, high performance of resistance to stalling at low speeds.
With a built-in high-pressure common rail, fuel injector etc., the engine has low noise, comfortable sounds and less vibration.
Internal tilt cylinder avoids and reduces scrape possibility. Enlarge access space and given better appearance.
Large foot space and non-slip make the operator get on and get off the vehicle more easily.
The mechanical-hydraulic control lever disposed at the front of the panel. The ergonomic headlines designed to help reduce the driver‘s arm fatigue.
- Ergonomic sharp design and adjustable backrest.
- Adjustable forward and reverse.
- Retractable safety belt.
Accelerate/Brake/ Inching pedal all configurations with ergonomic design. Wide-open foot space provides the comfortable foot activity space. The enlarged space give operator great comfortable and less stress, make the operator get on or get off the vehicle more easily.
| Model | ||||
|---|---|---|---|---|
| Load capacity | 8800 lbs | 9900 lbs | 11000 lbs | 12,000 LBS |
| Length (w/o forks) | 123 in | 125 in | 131 in | 135.2 IN |
| Width | 58.7 in | 58.7 in | 58.7 in | 60.0/69.7 |
| Height (overhead guard) | 89 in | 89 in | 89 in | 89.4 |
| Travel speed (laden) | 12 mph | 12 mph | 12 mph | |
| Travel speed (unladen) | 16 mph | 16 mph | 16 mph | |
| Lift speed (laden) | 96.9 fpm | 96.9 fpm | 96.9 fpm | |
| Lift speed (unladen) | 98 fpm | 98 fpm | 98 fpm | |
| Turning radius | 107 in | 108 in | 108 in | 117.5 IN |
| Engine | KUBOTA WG3800 | KUBOTA WG3800 | KUBOTA WG3800 | KUBOTA WG3800 |
| Rated output / Speed | 70@2600 kW/rpm | 70@2600 kW/rpm | 70@2600 kW/rpm |
Swing-Down Bracket
Swing- Out LPG Bracket
Dual Wheel
Mast Lock
Cabin
Climate Controlled Full Cabin
Pre-Cleaner Engine Air Intake
Side Shift
Hinged Fork
Rotating Fork
Shovel
Bale Clamp
